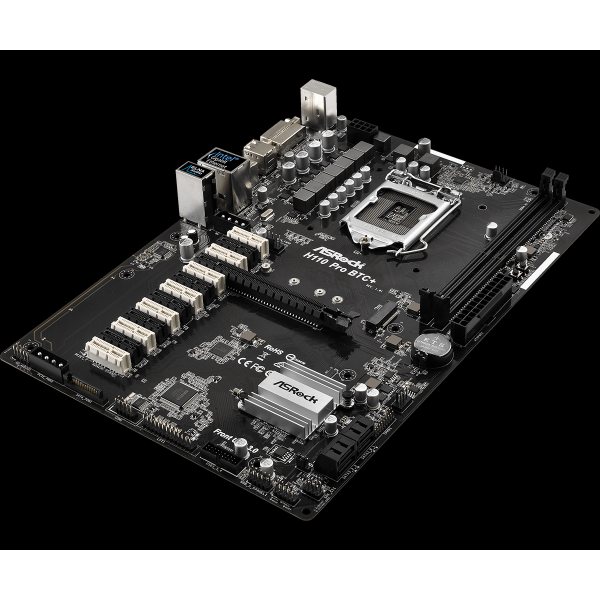

Mainboard Asrock H110 PRO BTC+

H110 Pro BTC+

ASRock Super Alloy
Supports 7th and 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors
Supports DDR4 2400/2133
1 PCIe 3.0 x16, 12 PCIe 2.0 x1
Graphics Output: DVI-D
7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
4 SATA3, 1 M.2 (SATA3)
4 USB 3.1 Gen1 (2 Front, 2 Rear)
Intel® Gigabit LAN
Onboard Power On / Reset Button

Unique Feature ASRock Super Alloy

• Sapphire Black PCB
• High Density Glass Fabric PCB ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop CPU
• Supports 7th and 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151)
• Supports CPU up to 91W
• Digi Power design
• 8 Power Phase design
• Supports Intel® Turbo Boost 2.0 Technology Chipset
• Intel® H110 Memory
• Dual Channel DDR4 Memory Technology
• 2 x DDR4 DIMM Slots
• Supports DDR4 2400/2133 non-ECC, un-buffered memory*
• Supports ECC UDIMM memory modules (operate in non-ECC mode)
• Max. capacity of system memory: 32GB*
• Supports Intel® Extreme Memory Profile (XMP) 2.0
• 15µ Gold Contact in DIMM Slots *7th Gen Intel® CPU supports DDR4 up to 2400; 6th Gen Intel® CPU supports DDR4 up to 2133.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. BIOS

• 64Mb AMI UEFI Legal BIOS with multilingual GUI support
• ACPI 5.0 Compliant wake up events
• SMBIOS 2.7 Support
• CPU, DRAM, PCH 1.05V Voltage multi-adjustment Graphics
• Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics
• Gen9 LP, DX11.3, DX12
• HWA Encode/Decode: VP8, HEVC 8b, VP9, HEVC 10b (For 7th Gen Intel® CPU)
• HWA Encode/Decode: VP8, HEVC 8b; GPU/SW Encode/Decode: VP9, HEVC 10b (For 6th Gen Intel® CPU)
• Max. shared memory 1024MB**
• Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
• Supports Accelerated Media Codecs: HEVC, VP8, VP9
• Supports HDCP with DVI-D Port
• Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port *Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

**The size of maximum shared memory may vary from different operating systems. Audio

• 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
• Supports Surge Protection
• ELNA Audio Caps *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. LAN
• Gigabit LAN 10/100/1000 Mb/s
• Giga PHY Intel® I219V
• Supports Wake-On-LAN (Supported on Black PCIe Slots only)
• Supports Lightning/ESD Protection
• Supports Energy Efficient Ethernet 802.3az
• Supports PXE Slots
• 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
• 12 x PCI Express 2.0 x1 Slots *Supports NVMe SSD as boot disk Storage
• 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug*
• 1 x M.2 Socket, supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module *If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. Connector
• 1 x Print Port Header
• 1 x COM Port Header
• 1 x TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x CPU Fan Connector (4-pin)*
• 2 x Chassis Fan Connectors (4-pin)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 2 x PCIe Power Connectors-1 x SATA Power Connector
• 1 x Front Panel Audio Connector
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
• 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. Rear Panel I/O

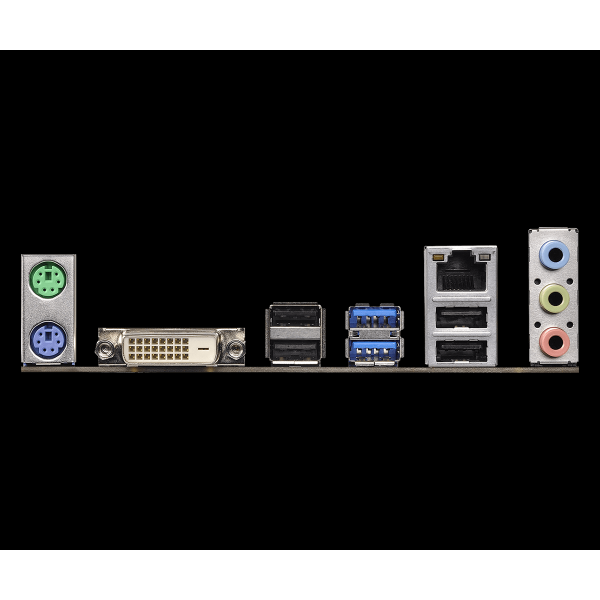

• 1 x PS/2 Mouse Port
• 1 x PS/2 Keyboard Port
• 1 x DVI-D Port
• 4 x USB 2.0 Ports (Supports ESD Protection)
• 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software
• ASRock APP Charger
• ASRock XFast LAN UEFI
• ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD
• Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Accessories
• Quick Installation Guide, Support CD, I/O Shield
• 2 x SATA Data Cables
• 1 x Screw for M.2 Socket Hardware Monitor
• CPU/Chassis temperature sensing
• CPU/Chassis Fan Tachometer
• CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
• CPU/Chassis Fan multi-speed control
• CASE OPEN detection
• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore Form Factor
• ATX Form Factor: 12.0-in x 8.2-in, 30.5 cm x 20.8 cm
• Solid Capacitor design OS
• Microsoft® Windows® 10 64-bit (For 7th Gen Intel® CPU)
• Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6th Gen Intel® CPU) *To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions. Certifications
• FCC, CE
